1. Motor Drive Top Plate, stabilises the pressure on goods.
2. Pallet stretch wrapping machine uses LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet.
3. Film provides extra support during transportation and storage to protect them from dust, moisture or damage.
4. The pallet wrap machine has been widely used in industries such as glassware, tools, electric & electronic, paper, pottery, food & beverage, etc.
5. High efficiency and low electricity-consumption, convenient in operation.
6. The wrapping type and times can be designed to the customers’ specific requirements.
7. Photoelectric sensor tests pallet height automatically.
8. Auto reset of turn table.
9. Pre-stretch ratio: 300%.
10. Programmable control and frequency converter is available.
11. PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
12. Variable lift speed/ film tension control. Film up/down controls.
13. Pallet wrapping machine has a soft start and soft stop.
14. Suitable for light and unsteady pallets.
15. Automatic welded type cut film, without tail of film after wrapping.
16. Remote control start machine.
Saving Film ConsumptionHigh pre-stretch Rate
Maximum up to 380% pre-stretch rate
Maximize the value of each meter of stretch film
Standard constant releasing film Fixed-point wrapping and quantitative use of film

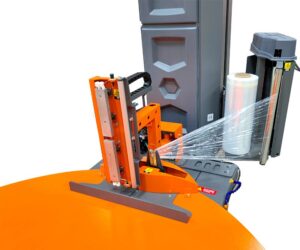

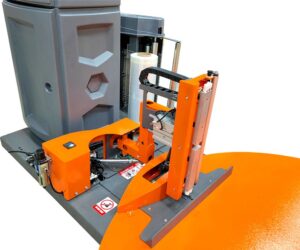

Automatic cut and clamp filmAutomatic cut film system–Welded type, operator does not need to manually cut the film and put film on pallet any more. The cut & clamp film system will do it automatically.
SIEMENS control systemIf you want to buy a good and durable machine, the electrical parts will be very important. If one electric part is of a bad brand, it’s a big risk for the customer, because if one part does not work, the whole machine will stop working. Should the electric part have any problems, sometimes it’s difficult to fix, because you do not know which part is faulty from the serval parts, so our pallet stretch wrapping machines’ all consist of only the best brands.
LCD touch operating systemSMART WASP pallet wrapping machines use the best of intelligent touch screen, the reaction of the touch screen and function is perfect. The touch screen can set the turntable speed, up & down speed and film carriage speed directly, and we also prepare for our customers with 6 wrapping models for their pallets. Most of our customers have different pallets to wrap, so the different pallets need different wrapping speeds and wrapping force. The customer just needs set the 6 model one time, then just choose the right model for their pallet, do not need to adjust the parameter each time any more.
Remote control systemMachine can be easily operated by remote control which makes the machine start and pause more conveniently. Only needs a remote control.
TECHNICAL DATA
| Model | Smart Wasp X100p | Spare Parts | Brand | ||
| Feature | Main Products | Inverter | SIEMENS | ||
| Maximum wrapping speed | 15-25 loads/hour | Photoelectric sensor | SICK(Germany) | ||
| Max Wrapping Height & Weight | 2200mm / 2000KG | PLC | SIEMENS (Germany) | ||
| Turntable Speed | 0-13RPM(Adjustable) | Travel Switch | OMRON(Japan) | ||
| Turntable Size | 1650mm | Motor | GPG(Taiwan) | ||
| Turntable Drive | 0.75PH Chain Drive | Relay | OMRON(Japan) | ||
| Clamp and Cut Film | Automatic | Reducer | GPG | ||
| Machine Size | L:2800mm W:1650mm H:3250mm | Position switch | SICK(Germany) | ||
| Machine Weight | 800KG | Touch screen | X-LINE/SIEMENS | ||
| Standard Pre-Stretch | 300% pre-stretch | Contactor | SIEMENS | ||
| Film Capacity | 250mm Diameter | ||||
| Standard Film Width | 500mm | ||||
| Film Delivery System | Power Pre -Stretch | Special Process | Introduction | ||
| Packing Force | Changeable | Frame | Steel + ABS | ||
| Intelligent-Sensor | Standard | Printing | Metallic Paint | ||
| Rope Grip System | Optional | Fall-proof | Inside Safety Belt | ||
| Safety Device | CE standard | Cutting | Laser | ||
| Alarm System | Have | Turntable Roller | Double Nylon Roller | ||
| Top Pressure | Motor Drive/600-2200mm press height | Up & Down Drive | Belt | ||
| Ramp: | optional | Up & Down Guideway | Double Balance Device | ||
FAQ
1. What is the mast height of the machine?
X100p pallet wrapping machine has a mast height of 2650mm, and the max packing height is 2000mm. If your pallet height is over 2000mm, you may need to choose a mast height of 3600mm. The max packing height will then be 3000mm.
2. How to choose a control system?
Our machine uses Siemens control system. Top brand spare parts ensure a longer machine lifespan.
3. What is the turntable size?
The standard turntable size is 1800mmx1650 mm and a 2000mm turntable is optional.
4. What is the temperature that must be used?
The standard machine needs > 0 degrees.
If <0 degrees a special motor will be required.
5. What is the thickness of the turntable steel and what must be used to cut the steel?
The turntable steel is 10mm. It is recommended to use water cutting technology. Do not use laser cutting.
6. What is the max weight that can be used?
Our standard pallet stretch wrapper max load weight is 2000KG. Above 2000KG, we need to change to steel roller under the turntable. Standard machines use plastic rollers.
7. Ramp and weighing scale provided?
Yes, ramp and weighing scale is optional.
